Studying discrete-time dynamical systems (V): generalization of dynamical systems able to produce spirals and clusters of points

Following my previous post, here is a new beauty I was able to find recently. The following is an animation of the families: $$S_{D}=\{(x,y, f(z)): (x_{n+1},y_{n+1}) = (Im(f(x_{n} + y_n  i)\cdot\sin{\frac{D}{f}}, Re(f(x_{n} + y_n i))\cdot\cos{\frac{D}{f}})\}$$ Where $f(z)=\frac{1}{(z^{1.5}+1)^t}, t$ from $1$ to $2$ by $0.01$ steps. Each frame is a complete family plot, calculated using $D \in [0,8 \cdot 10^3], n \in [0,8 \cdot 10^3]$ zoom into region $z=[+/-5]+[+/-5]i$. It took me some days to render it as well:

And this is the family of dynamical systems of $f(z)=\frac{1}{(z^{1.5}+1)^0.9}$, Rorschach test anyone?

I am trying to find some academic group working on this kind of complex maps to share these "stochastic" models. If I am able to make some advances on this topic I will post the news here. Crossing fingers!

Hobbymath's wanderings #20

Strange Attractors (pdf).

Turbulence (Wikipedia).

Complex dynamics (Wikipedia).

Lamination (Wikipedia).

Holomorphic function (Wikipedia).

Conformal map (Wikipedia).

Chaos theory (Wikipedia).

N-body simulation (Wikipedia).

N-body visualization (100,000 Stars) (App).

Writing your own star cluster simulator (Recommended!).

Boids (Wikipedia).

Barycentric subdivision (Wikipedia).

Japanese mathematics (Wikipedia).

Sangaku (Wikipedia).

Indra's net (Wikipedia).

Python simulation of gravity (Very good!).

Arithmetic function (Wikipedia).

Dirichlet convolution (Wikipedia).

Continuous approximations to arithmetic functions (Terence Tao).

Robbins Constant.

Square Line Picking.

Space-filling curve (Wikipedia).

Hilbert curve (Wikipedia).

Hyperchaos (Scholarpedia).

Spherical wave transformation (Wikipedia).

Joukowsky transform (Wikipedia).

The strange beauty of the Gumowski-Mira Attractor.

About what is called "Gumowski-Mira map" (Christian Mira).

Studying discrete-time dynamical systems (IV): generalization of dynamical systems able to produce spirals and clusters of points

Here is an animation of the families mentioned in my previous post: $$S_{D}=\{(x,y, f(z)): (x_{n+1},y_{n+1}) = (Im(f(x_{n} + y_n  i)\cdot\sin{\frac{D}{f}}, Re(f(x_{n} + y_n i))\cdot\cos{\frac{D}{f}})\}$$ Where $f(z)=\frac{1}{(z+1)^t}, t$ from $1$ to $2$ by $0.01$ steps. Each frame is a complete family plot, calculated using $D \in [0,8 \cdot 10^3], n \in [0,8 \cdot 10^3]$ zoom into region $z=[+/-5]+[+/-5]i$. It took me some days to render it:

It is visually astonishing! Still I did not receive any feedback regarding my question at Mathematics Stack Exchange about the dynamical systems that make these beauties. As far as I know it is the first time they are shown.

Studying discrete-time dynamical systems (III): generalization of dynamical systems able to produce spirals and clusters of points

In a previous post I wondered if there were any other dynamical systems able to generate spirals and clusters of points as the found expression:

$$S_{D}=\{(x,y): (x_{n+1},y_{n+1}) = (Im(\psi(x_{n} + y_n  i)\cdot\sin{\frac{D}{f}}, Re(\psi(x_{n} + y_n i))\cdot\cos{\frac{D}{f}})\}$$

 To answer this, first I had a look to the image of the complete plot of the family of spirals:

We can see that there is a quasi-horizontal symmetry there. Both the "upper body" ($z=a+bi , b \ge 0$) and "lower body" ($z=a+bi , b \lt 0$) are quite symmetrical, but not exactly equal. The structure also has three vertical bodies / structures, a right side arc-like structure, a central body and a left-side body. These are the regions where the density of points is bigger.

The density of points make this structures to look like they are "glowing" (e.g. they remind a bioluminiscent jellyfish). The areas where there is more density of points seems to "glow" compared with other areas of lower density.

First question: who is responsible for making the spirals and who is responsible for deciding the location and distortion of the spirals?

To answer this, first I need to amend the expression:
$$S_{D}=\{(x,y): (x_{n+1},y_{n+1}) = (Im(\psi(x_{n} + y_n  i)\cdot\sin{\frac{D}{f}}, Re(\psi(x_{n} + y_n i))\cdot\cos{\frac{D}{f}})\}$$ And make it more general, it is: $$S_{D}=\{(x,y, f(z)): (x_{n+1},y_{n+1}) = (Im(f(x_{n} + y_n  i)\cdot\sin{\frac{D}{f}}, Re(f(x_{n} + y_n i))\cdot\cos{\frac{D}{f}})\}$$ So indeed: the family of dynamical systems is even bigger. Depending on the complex function that is used we will have a different structure. All of them have similar transformations but the results depend obviously on the selected function. So basically my original question was about the above more general family of dynamical systems when $f(z)=\psi(z)$ is specifically the digamma function.

Now, going back to the digamma expression:
$$S_{D}=\{(x,y): (x_{n+1},y_{n+1}) = (Im(\psi(x_{n} + y_n  i)\cdot\sin{\frac{D}{f}}, Re(\psi(x_{n} + y_n i))\cdot\cos{\frac{D}{f}})\}$$ Let us split the expression into two versions:

Version 1: No sine or cosine are applied:
$$S_{D}=\{(x,y): (x_{n+1},y_{n+1}) = (Im(\psi(x_{n} + y_n  i)), Re(\psi(x_{n} + y_n i)))\}$$and

Version 2: No function is applied, only the crossing of $Re$ and $Im$ (the meaning of "crossing" is as explained in the question):
$$S_{D}=\{(x,y): (x_{n+1},y_{n+1}) = (Im(x_{n} + y_n  i)\cdot\sin{\frac{D}{f}}, Re(x_{n} + y_n i)\cdot\cos{\frac{D}{f}})\}$$ Version 1 will provide the following result:



Version 2 will provide the following result (for the same $n$ iterations and $f$ and $D$ parameters):



So the conclusion is: the sine and cosine expressions provide the observed horizontal quasi-symmetry of the dynamical systems, and the digamma function was providing the spiral-like structures. The combination of both expressions provide a final structure in which the spirals of the digamma function are transformed, displaced and distorted by the sine and cosine transformations.

Second question: what do we obtain if we replace the digamma function by other functions?

My observations are that we obtain different "glowing" systems, but they share similar characteristics: horizontal quasi-symmetry, and three vertical structures (left, center, right), in other words, regions in which the density of points is bigger.

These are some of those beauties:

Scaled complementary error function, $f(z)=exp(z^2) \cdot erfc(z)$. (see Python scipy.special functions list, Steven G. Johnson, Faddeeva W function implementation). $D \in [0,10^4], n \in [0,10^4]$ zoom into region $z=[+/-5]+[+/-5]i$:



$f(z) = $ Exponential integral $E_1$ of complex argument $z$. (see Python scipy.special functions list). $D \in [0,10^3], n \in [0,10^4]$ zoom into region $z=[+/-1]+[+/-4]i$:



$f(z)=$ Exponential integral $E_i$. (see Python scipy.special functions list). $D \in [0,10^3], n \in [0,10^4]$ zoom into region $z=[+/-5]+[+/-5]i$:



Finally, my favorite families so far, $f(z)=\frac{1}{(z+1)^t}, t \in \Bbb R$. $D \in [0,8 \cdot 10^3], n \in [0,8 \cdot 10^3]$ zoom into region $z=[+/-5]+[+/-5]i$::

$f(z)=\frac{1}{(z+1)}$:



$f(z)=\frac{1}{(z+1)^{1.1}}$:



$f(z)=\frac{1}{(z+1)^{1.2}}$:



$\cdots$

$f(z)=\frac{1}{(z+1)^{2}}$:



$\cdots$

$f(z)=\frac{1}{(z+1)^{3}}$:



I just can say that these structures are visually beautiful. I will keep my question regarding these families of dynamical systems open at MSE in hope that somebody will be able to provide more insights about why this transformation / mapping works in this way.

Trying to understand the maths behind the movements of a two-legged air dancer (aka skydancer, tube man)

I am trying to understand the maths behind the movements of a two-legged air dancer, aka skydancer aka tube man. Well, I mean these cheery friends here:



(This is a mirror of my question on this topic at MSE) The following discrete time algorithm is my devised solution, but I am sure that other much better approaches are possible. Indeed it is not very realistic and I am not very happy. I would like to learn other solutions more closer to reality and related with dynamical systems, complex dynamics or fluid dynamics:

1. Take for instance a unit square, same width and height. Then generate two partially (explanation of the "partially" wording is done below) random walks with these rules:

2. The first partially random walk $R1$ starts at $(0,0)$ and finishes at $(1,1)$

3. The second random walk $R2$ starts at $(0,1)$ and finishes at $(1,0)$

4. We will generate $n$ random points sequentially for $R1$ as follows. The first point is $(x_0,y_0)=(0,0)$, then we will take a random point from the intervals $([0,1],[0,1])$, it will be $(x_1,y_1)$. Then $(x_2,y_2)$ will be a random point from the intervals $([x_2,1],[y_2,1])$, then next point $([x_3,1],[y_3,1])$, etc. So we are approaching $(1,1)$ on each iteration. Usually $n=20$ iterations is good enough to be visually very close to $(1,1)$ so the simulation is good enough. The reason of the "partially" wording is that on every iteration we reduce the intervals, so it is not always a random point of the square unit, so it is not totally random.

5. In the same fashion we will generate points for $R2$ but the intervals will approach on each iteration to $(1,0)$.

6. Now we will create segments joining the sequential points of $R1$ and same for $R2$.

7. As both paths are crossing completely each diagonal of the square unit, there is an intersection point between them. Mark with a disk the intersection of both random paths and display the unit square including the segments and the intersection.

8. Execution: the algorithm can be looped for an infinite time of $t$ units in a loop, and each iteration $t$ will generate the aspect of the air dancer for that unit of time. So in my case the algorithm makes a kind of discrete system.

And this is how looks my air dancer simulation:



And another one with two dancers:



Some facts and trivia:

1. Due to the way that the segments are generated, the lengths of them are not totally random, see the square line picking problem.

2. The above solution might be defined as a kind of discrete map where each unit of time $t$ is independent of the status of the previous unit of time (but this can be modified to make movements depend on the previous unit of time at some extent so it would be a standard discrete-time map).

3. The algorithm works for any square, not only the unit square, it is just an example. They can be any desired width and height.

4. The legs of the air dancers are usually fixed to the ground, but not the arms, and that is a part of my simulation that is not very realistic (apart from others) although I think that it would be more or less easy to enhance this point specifically.

I would like to simulate this kind of objects with a more realistic approach, but initially I did not find a reference on Internet. My guessing is that it must be very related to dynamical systems and more specifically to fluid dynamics, so it might be possible to express the movement by a discrete (map) or continuous (based on derivatives) dynamical-system.

Below is the Python code for my simulation (also available at my account at repl.it). It will work in, for instance, a personal computer using Python Anaconda if the pygame library is downloaded as usual. Feel free to use and modify it and enjoy!

#!/usr/bin/env python
import pygame
import random
from collections import defaultdict
from time import sleep

# This script aims to simulate a tube man aka air dancer aka skydancer
# https://en.wikipedia.org/wiki/Tube_man

# The code will generate a TOTWIDTHxTOTHEIGHT pixels screen
# where HOBJECTSxVOBJECTS skydancers are generated
# each one with a similar WIDTHxHEIGHT
# the body of each skydancer is a disk of radius = RBIG pixels
# the simulation runs until ESC is pressed and each
# simulation time unit is shown during DELAYSEC seconds
# then the screen is wiped and the next time unit image is calculated

# Initialization constraints
HOBJECTS=2 #number of air dancers per line
VOBJECTS=1 #number of rows
WIDTH, HEIGHT = 200, 200
TOTWIDTH, TOTHEIGHT = WIDTH*HOBJECTS, HEIGHT*VOBJECTS
RBIG = 17#10#17
RSMALL = 8#8
DELAYSEC=0.3

def air_dancer_simulator():
    pygame.init()
    win=pygame.display.set_mode((TOTWIDTH, TOTHEIGHT))

    keysPressed = defaultdict(bool)

    def ScanKeyboard():
        while True:
            # Update the keysPressed state:
            evt = pygame.event.poll()
            if evt.type == pygame.NOEVENT:
                break
            elif evt.type in [pygame.KEYDOWN, pygame.KEYUP]:
                keysPressed[evt.key] = evt.type == pygame.KEYDOWN

    # detects the intersection point (x,y) of two lines, if exists.
    def line_intersection(line1, line2):
        xdiff = (line1[0][0] - line1[1][0], line2[0][0] - line2[1][0])
        ydiff = (line1[0][1] - line1[1][1], line2[0][1] - line2[1][1])

        def det(a, b):
            return a[0] * b[1] - a[1] * b[0]

        div = det(xdiff, ydiff)
        if div == 0:
            raise Exception('lines do not intersect')

        d = (det(*line1), det(*line2))
        x = det(d, xdiff) / div
        y = det(d, ydiff) / div
        return x, y

    bClearScreen = True
    pygame.display.set_caption('Skydancer aka tube man aka air dancer simulator')
    loop=0

    #Seed points of the air dancer sequential segments to be generated are (0,0) and (0,1)
    x_currpos_incdiag = 0
    y_currpos_incdiag = 0
    x_currpos_decdiag = 0
    y_currpos_decdiag = HEIGHT-1

    test_points_inc=[[x_currpos_incdiag,y_currpos_incdiag]]
    test_points_dec=[[x_currpos_decdiag,y_currpos_decdiag]]

    frames=0
    # the simulation will run infinite discrete units of time (ESC to finish the simulation)
    while True:
        # draw biash
        for biash in range(0,HOBJECTS):
            for biasv in range(0,VOBJECTS):
                loop=1
                while True:
                    # each dancer is finished in 20 iteracions
                    if loop%20==0:

                        found=False
                        for i in range(0,len(test_points_inc)-2):
                            for j in range(0,len(test_points_dec)-2):
                                try:
                                    x,y=line_intersection([test_points_inc[i],test_points_inc[i+1]],[test_points_dec[j],test_points_dec[j+1]])
                                    if x>=0 and x<=WIDTH and y>=0 and y<=HEIGHT:
                                        if (test_points_inc[i][0]<=x) and (x<=test_points_inc[i+1][0]):
                                            if (test_points_inc[i][1]<=y) and (y<=test_points_inc[i+1][1]):
                                                if (test_points_dec[j][0]<=x) and (x<=test_points_dec[j+1][0]):
                                                    if (test_points_dec[j][1]>=y) and (y>=test_points_dec[j+1][1]):
                                                        # Detected interection of two segments, will be the body of the air dancer
                                                        pygame.draw.circle(win, (255,255,255),(int(x)+(biash*WIDTH),int(y)+(biasv*HEIGHT)),RBIG)
                                                        found=True
                                                        break
                                except:
                                    pass

                            if found==True:
                                break

                        #pygame.display.flip()
                        #sleep(5)

                        #initial positions
                        x_currpos_incdiag = 0
                        y_currpos_incdiag = 0
                        x_currpos_decdiag = 0
                        y_currpos_decdiag = HEIGHT-1
                        test_points_inc=[[x_currpos_incdiag,y_currpos_incdiag]]
                        test_points_dec=[[x_currpos_decdiag,y_currpos_decdiag]]
                        break

                    x_newpos_incdiag = random.randint(x_currpos_incdiag,WIDTH-1)
                    y_newpos_incdiag = random.randint(y_currpos_incdiag,HEIGHT-1)
                    x_newpos_decdiag = random.randint(x_currpos_decdiag,WIDTH-1)
                    y_newpos_decdiag = random.randint(0,y_currpos_decdiag)

                    test_points_inc.append([x_newpos_incdiag,y_newpos_incdiag])
                    test_points_dec.append([x_newpos_decdiag,y_newpos_decdiag])

                    pygame.draw.line(win, (150,200,255),(x_currpos_incdiag+(biash*WIDTH),y_currpos_incdiag+(biasv*HEIGHT)),(x_newpos_incdiag+(biash*WIDTH),y_newpos_incdiag+(biasv*HEIGHT)))
                    pygame.draw.line(win, (150,200,255),(x_currpos_decdiag+(biash*WIDTH),y_currpos_decdiag+(biasv*HEIGHT)),(x_newpos_decdiag+(biash*WIDTH),y_newpos_decdiag+(biasv*HEIGHT)))

                    # Add horizontal and vertical lines too
                    #pygame.draw.line(win, (255,255,255),(x_currpos_incdiag+(biash*WIDTH),y_currpos_incdiag+(biasv*HEIGHT)),(x_currpos_incdiag+(biash*WIDTH),0+(biasv*HEIGHT)))
                    #pygame.draw.line(win, (255,255,255),(x_currpos_incdiag+(biash*WIDTH),y_currpos_incdiag+(biasv*HEIGHT)),(x_currpos_incdiag+(biash*WIDTH),HEIGHT+(biasv*HEIGHT)))
                    #pygame.draw.line(win, (255,255,255),(x_currpos_decdiag+(biash*WIDTH),y_currpos_decdiag+(biasv*HEIGHT)),(0+(biash*WIDTH),y_currpos_decdiag+(biasv*HEIGHT)))
                    #pygame.draw.line(win, (255,255,255),(x_currpos_decdiag+(biash*WIDTH),y_currpos_decdiag+(biasv*HEIGHT)),(WIDTH+(biash*WIDTH),y_currpos_decdiag+(biasv*HEIGHT)))

                    # Add circles on each beginning and end of segment
                    #pygame.draw.circle(win, (150,200,255),(x_currpos_incdiag+(biash*WIDTH),y_currpos_incdiag+(biasv*HEIGHT)),RSMALL)
                    #pygame.draw.circle(win, (150,200,255),(x_currpos_decdiag+(biash*WIDTH),y_currpos_decdiag+(biasv*HEIGHT)),RSMALL)

                    x_currpos_incdiag = x_newpos_incdiag
                    y_currpos_incdiag = y_newpos_incdiag
                    x_currpos_decdiag = x_newpos_decdiag
                    y_currpos_decdiag = y_newpos_decdiag

                    win.lock()
                    win.unlock()
                    ScanKeyboard()

                    if keysPressed[pygame.K_ESCAPE]:
                        pygame.image.save(win, "intersections.png")
                        break

                    loop = loop+1

                    if keysPressed[pygame.K_ESCAPE]:
                        pygame.image.save(win, "intersections.png")
                        break

                if keysPressed[pygame.K_ESCAPE]:
                    pygame.image.save(win, "intersections.png")
                    break

            if keysPressed[pygame.K_ESCAPE]:
                pygame.image.save(win, "intersections.png")
                break

        if keysPressed[pygame.K_ESCAPE]:
            pygame.image.save(win, "intersections.png")
            break

        pygame.display.flip()
        sleep(DELAYSEC)

        # Uncomment to save the frames, then you can create an animated gif or video with
        # your favorite program (e.g. VirtualDub)
        #pygame.image.save(win, "airdancer_" + str(frames) + ".png")

        frames=frames+1

        if bClearScreen:
            win.fill((0, 0, 0))

air_dancer_simulator()

Studying discrete-time dynamical systems (II): a dynamical system able to produce spirals and clusters of points

I have found by trial and error an interesting family of dynamical systems giving some nice strange attractors. They are chaotic complex systems based on the digamma function. It is defined by a complex discrete map as follows:

(This is a mirror of my question at MSE)

$$S_{D}=\{(x,y): (x_{n+1},y_{n+1}) = (Im(\psi(x_{n} + y_n  i)\cdot\sin{\frac{D}{f}}, Re(\psi(x_{n} + y_n i))\cdot\cos{\frac{D}{f}})\}$$

Where:

1. The seed is $(x_0,y_0)=(\pi/4,\pi/4)$

2. $\psi(x_{n} + y_n i)$ is the digamma function applied to a complex number $z_n=x_n+y_n i$

3. $f$ is a fraction constraint initially for this test fixed to $f = 1$.

4. $D$ is a constraint called "Depth", $D \in \Bbb N$.

5. The process is just calculating on each iteration the digamma function and then generating a complex number $(z_{n+1}=x_{n+1},y_{n+1})$, where the real part of the complex number at the iteration $n+1$ comes from the imaginary part of the complex number associated with the previous iteration $n$, and likewise the imaginary part of the complex number of the iteration $n+1$ comes from the real part of the complex number generated at the iteration $n$. In other words, it is "crossing" $Im$ and $Re$ on each iteration.

Some details of the trial and error process: Any other combination of sine, cosine or not "crossing" $Im$ and $Re$ on each iteration will not provide the patterns I will show below. Modifying the seed will provide the same results but located in other points of the plane or distorted. Modifying the fraction $f$ just generates other similar attractors, so $f$ was fixed to focus the tests.

Basically: for every fixed $D$ (Depth) and for a fixed $f=1$ value, if we run the system up to as much as we want big $n$ we arrive to a sink of a strange attractor, so from that point the set of points will not grow, and the graph of the set of points $S_n$ shows an attractor.

Running the system for $D \in [0,250]$ and up to $n = 4 \cdot 10^4$ (it can be a higher value but for the tests is a good enough number) we obtain a family of attractors that can be divided into three different types or shapes: **clusters**, **spirals** and what I call "**anomalies**".

1. Clusters are just clusters of points, a rounded shape, but the points can not escape from that space. For instance, $S_5$:

2. Spirals have the shape of different types of spirals: two arms, three arms, four, etc. For instance, $S_{45}$:

3. Anomalies are very specific shaped attractors. The limits are very well defined. For instance, $S_{22}$ and $S_{75}$:

I wanted to see all them together, they look like this, it is zoomed a little bit:

There is too much density of points when we show the big clusters together with the spirals and the anomalies, so I decided to split them into three groups and I focused on the family of spirals, and this is the graph of the spiral-shaped attractors in $Depth \in [0,250]$ (click to zoom the image in a full screen view):



I wanted to make a simulation exercise with this. As it is said that complex dynamical systems are closer to reality and the attractors obtained are spirals and clusters I tried to see if it is possible to simulate some galaxies and star clusters with this information. So I added a third dimension using the $Depth$ value.

$$S_{Depth}=\{(x,y,d): (x_{n+1},y_{n+1},d_{n+1}) = (Im(\psi(x_{n} + y_n  i)\cdot\sin{\frac{D}{f}}, Re(\psi(x_{n} + y_n i))\cdot\cos{\frac{D}{f}}, D+(\sin{n}))\}$$

The $d$ value locates each attractor $S_D$ in a different depth, and the sine is just a trick to add some "random" volume to each cloud of points of each attractor. I used a LiDAR free viewer to visualize the $(x,y,d)$ points in the three-dimensional space (in my case PointCloudViz Free Edition), and it looked quite promising. I decided to invert and colorize the images with GIMP2, and these are some results. They are exactly the same points as shown in the previous plots, but colorized and viewed from inside the cloud of points in a three-dimensional environment (click to zoom the images in a full screen view):



It seems that these points can "simulate" galaxies at some rudimentary extent. It would be interesting to run a n-body simulation with this family of attractors.

I am not sure if it is correct to talk about strange attractors in the case of the cluster and spiral shapes. The iterations really arrive to a $n$ value such that the point $(x_n,y_n)$ is a sink and the set of points does not grow from that moment, but I am not sure if it is correct to talk about strange attractor, just attractor or just dynamical system attached to a complex map. I am more sure about for instance the case $D=22$ shown above because the shape of the attractor is very clear.

I wonder if there are any other dynamical systems able to generate this kind of shapes.

update 2017/11/10: for the sake of completeness, below there is a two dimensional $n$-body gravity simulation using the first $600$ points generated by the $S_5$ set. We consider the points as a protoplanetary disk, and the closest point to the average center of the points will be given the biggest density and thus it will turn into a central sun. I have provided random densities, radius, mass and momentum to the rest of points, so they simulate distinct types of planets by accretion. The less dense planets are whitish-bluish, the average density planets are greenish (Earth-like) and the heaviest planets are reddish. Depending on the volume, the colors are lightest on each variety, the bigger the lighter. When two planets collide, the bigger mass takes the average density of both planets and all the mass and momentum. When the planet collides with the central sun, the sun takes all the mass and the average density but it remains fixed as the center of the system. This simulation (is a looped animation) has $12500$ units of time. The Python code is a very nice work by Thanassis Tsiodras, with some customizations of my own to add random densities and colors for a little bit more realistic visualization, so credits to the author (site here):

It seems that the clouds of points generated by the dynamical system are valid to simulate some basic behavior of protoplanetary disks. We can see that the initial accretion cloud starts to be cleaned out: some protoplanets collide and generate a bigger planet with a new averaged density and radius. Others are expelled from the protoplanetary disk due to the distinct gravity interactions. Others collide with the sun, making it bigger, and finally after some units of time it gets stable with some few planets of different density and more or less stable trajectories. Be aware that the animation is gradually zooming out to see the more external trajectories (it seems that the planets and the sun are shrinking because there is no background reference).

Update 2017/11/20: I have uploaded the code to my repl.it account (link here). It cannot be run online because it requires saving the images of the different dynamical systems. It will work in, for instance, a personal computer using Python Anaconda. Feel free to use and modify it and enjoy! Just in case, here is a backup copy too:

# Why is this family of dynamical systems able to produce spirals and clusters of points?
# code attached to the question at Mathematics Stack Exchange: https://math.stackexchange.com/q/2506900/189215
# keys: recurrence-relations, dynamical-systems, visualization, experimental-mathematics, chaotic-systems

def sa():
    import matplotlib.pyplot as plt
    from math import pi
    from cmath import cos , sin
    from scipy.special import digamma

    # Each system is iterated up to [testlimit] times
    # It can be a higher value but for the tests is a good enough number to arrive to the sink points
    testlimit = 40000 #1000000

    # Complete list of points of each system, the first point of the list is the (x,y,z) seed
    # each dynamical system will have up to [testlimit] points. If we arrive to a sink point before the [testlimit]
    # iteration there is not need to continue, so the quantity of elements will be smaller.
    st=[]

    # Splitted lists of x,y and z coordinates of the points obtained on each iteration of the system stored at the [st] list
    lox = []
    loy = []
    loz = []

    # Depth D parameter range
    rangestart = 0
    rangelimit = 250

    # f parameter definition
    fraction=1

    # Using this very code, and reviewing the intependent graphs of the result of each
    # dynamical system, it is possible to split them into three different type of systems
    # anomalies, big clusters and spirals, see explanation at https://math.stackexchange.com/q/2506900/189215
    # you do not know beforehand (without printing) which Depth D value gives an anomalie, big cluster or spiral type
    # system, so the code below was added after printing individually each system and then splitting them into the
    # three possible types. So it was made by trial-error.
    anomalies_list = [22,25,44,47,66,88,97,110,113,132,135,151,173,176,179,195,198,204,220]
    bigclusters_list = [5,8,11,16,27,30,33,38,49,52,55,60,71,74,77,79,82,93,96,99,104,115,118,121,126,137,140,143,147,148,159,162,165,169,170,180,181,184,187,192,202,203,206,209]

    # We will generate a dynamical system for each Depth D parameter from [rangestart] to [rangelimit] included.
    for depth in range (rangestart,rangelimit+1):

        # Uncomment to avoid plotting the anomalies
        #if depth in anomalies_list:
        #    continue

        # Uncomment to avoid plotting the big clusters
        #if depth in bigclusters_list:
        #    continue

        st=[]

        # Seed of the dynamical system
        st.append([pi/4,pi/4,depth])

        # We will generate up to [testlimit] points of the current dynamical systes for a fixed D Depth.
        # if we arrive to a sink point we do not need to continue the loop up to [testlimit] because the
        # point will be repited again (so we do not need to plot more than once the sink point)
        for n in range (1,testlimit):

            # We read the former the previous iteration point (oldx,oldy,oldz)
            oldx=st[len(st)-1][0]
            oldy=st[len(st)-1][1]
            oldz=st[len(st)-1][2]

            # Then we calculate the digamma function of the previous iteration complex point [oldx+(oldy*(1j)]
            c=digamma(oldx+(oldy*(1j)))

            # This is the new point of the dynamical system for the current iteration
            newx=(c.imag)*(sin(depth/fraction))
            newy=(c.real)*(cos(depth/fraction))
            # The z coordinate is just a trick to give a random depth in space to the points
            # so we can simulate at some rudimentary extent a "physical" galaxy with the (x,y,z) points later
            newz=depth+(sin(n)).real

            # We add it to the list [st] of points (x,y,z) of the current dynamical system
            st.append([newx.real,newy.real,newz])

        # Once we have generated the points of the current D, f dynamical system, we have a
        # set of points S_D (where D is the Depth number). E.g S_1, S_2, etc.
        # see examples at https://math.stackexchange.com/q/2506900/189215
        # this loop below will remove repeated points before plotting them
        # to avoid memory overflow
        for idx in range(0,len(st)-1):
            if len(lox)==0:
                lox.append(st[idx][0])
                loy.append(st[idx][1])
                loz.append(st[idx][2])
            elif not(str(lox[len(lox)-1])==str(st[idx][0]) and (str(loy[len(loy)-1])==str(st[idx][1]))):
                # if we arrive to a sink we cannot go out from it, so we do not need to add again the same point
                lox.append(st[idx][0])
                loy.append(st[idx][1])
                loz.append(st[idx][2])

        # we set black color to the background and white color to the points
        ax = plt.gca()
        ax.set_axis_bgcolor((0, 0, 0))
        figure = plt.gcf()

        # If we want to see accuracy and details, we need to use a big enough resolution like the one below
        # Uncomment if you want to use the ZOOM-IN code
        #figure.set_size_inches(320, 32)
        #figure.set_size_inches(20, 32)

        ##ZOOM-IN print code BEGIN

        #if depth==rangelimit:
        #    # If we have generated all the family of dynamical systems, then we will print them all together
        #    plt.plot(lox,loy,",w")
        #    # Uncomment if you just want to diplay them
        #    #plt.show()
        #
        #    # This loop will generate some png files making a zoom-in to the plot
        #    # of the family of dynamical systems. You can joint them and create
        #    # an animation (div, anigif) with for instance the free application [VirtualDub]
        #    # the values and limits of the zoom were calculated by trial and error
        #    for zoom in range (105,140):
        #        dim=37/(zoom/100)
        #        plt.axis([-dim,dim,-dim*4/37,dim*4/37])
        #        plt.savefig("dynamical_system_digamma_family_zoom_in_"+str(zoom)+".png")
        ##ZOOM-IN print code END

        # We will show the current Depth D generated dynamical system
        plt.plot(lox,loy,",w")
        #plt.show()
        #We will save each dynamical system in a png file
        plt.savefig("dynamical_system_digamma_family_depth_"+str(depth)+".png")

        # then we clean the buffers and lists
        # If you want to use the ZOOM-IN code bove please COMMENT the code below (BEGIN-END)
        # BEGIN Clean buffers
        plt.clf()
        lox = []
        loy = []
        # END Clean buffers

sa()

Hobbymath's wanderings #19

Color wheel graphs of complex functions (Wiki).

Visualizing Complex Functions.

Conformal map visualizer (recommended!).

Benford's law (Wiki).

Domain coloring (Wiki).

Conformal Mapping.

Making stereograms with Python (recommended!).

Lifted Domain Coloring (pdf).

Domain coloring on the Riemann sphere.

Riemann sphere (Wiki).

Riemann Sphere.

Mercator projection (Wiki).

Azimuth (Wiki).

Plane-filling curves and fractals (pdf).

Automorphism (Wiki).

Rotational symmetry (Wiki).

Cyclic group (Wiki).

Root of unity (Wiki).

Root of unity modulo n (Wiki).

Wegert, E.; Semmler, G: Phase plots of complex functions: a journey in illustration (pdf).

Creating Digital Chladni Patterns.

Python example: Chladni patterns.

Logarithmic derivative (Wiki).

Digamma_function (Wiki).

Polygamma function (Wiki).

Arc length (Wiki).

Lacunarity (Wiki).

Bifurcation theory (Wiki).

Random Attractors Found using Lyapunov Exponent.

About strange attractors.

Strange attractor identification.

Rössler attractor (Wiki).

About strange attractors.

Dynamical_system (Scholarpedia).

Studying discrete-time dynamical systems (I): the double loop strange attractor

This is a little "experimental mathematics" study of the evolution of the strange attractors generated by a family of discrete-time dynamical systems, based on the following pattern:

$x_n=sin(2 \cdot x_{n-1})+((1+(\frac{C}{40}))\cdot y_{n-1})$

$y_n=cos(x_{n-1})$

The seed is $(x,y)=(0,1)$.

The video shows the evolution of the family of strange attractors obtained after $10^6$ iterations when $C$ is an integer value increasing from $0$ to $250$.

Each frame of the animation is a specific strange attractor generated for a single value of $C$ after $10^6$ iterations. So the first frame is the strange attractor generated by $C=0$ after $10^6$ iterations up to the last frame, generated by $C=250$ after $10^6$ iterations.

The initial steps recall the movement of some thick smoke in the air (e.g. the smoke of a cigarette). I am calling it "The double loop strange attractor" because when $C$ gets higher values it tends to have a very specific (kind of "art deco-esque") double loop pattern.

Update: It could be a "distant relative" of the De Jong strange attractor.

Update 2: This is the same family of strange attractors converting each $(x,y)$ pair into polar coordinates:

Galois theory and cyclic groups

Just an excerpt from Wikipedia... I am currently reading the book "Symmetry: A Mathematical Exploration" (Springer, Kristopher Tapp)". Is a good reading for beginners (like myself). Amazingly thanks to that great book I started to understand this kind of relationships:

"An $n^{th}$ root of unity may be thought of as a complex number whose $n^{th}$ power is $1$. That is, it is a root of the polynomial $x^n − 1$. The $n^{th}$ roots of unity form a cyclic group of order $n$ under multiplication. For example, the polynomial $0 = z^3 − 1$ factors as $(z − s^0)(z − s^1)(z − s^2)$, where $s = e^{2 \pi i / 3}$; the set $ \{ s^0, s^1, s^2 \} $ forms a cyclic group under multiplication. The Galois group of the field extension of the rational numbers generated by the $n^{th}$ roots of unity forms a different group. It is isomorphic to the multiplicative group modulo $n$, which has order $\phi(n)$ and is cyclic for some but not all $n$."

Converting complex domain coloring visualizations into autostereograms

As Wikipedia says regarding the domain coloring technique for complex functions:

"A graph of a complex function $g : \Bbb C \to \Bbb C $ of one complex variable lives in a space with two complex dimensions. Since the complex plane itself is two-dimensional, a graph of a complex function is an object in four real dimensions. That makes complex functions difficult to visualize in a three-dimensional space. "

The domain coloring technique transforms the points belonging to $f(z)$ into hue, brightness and saturation values, all normalized into $[0,1]$. Usually the argument of the complex number $f(z)$ is converted into a normalized value $[0,1]$ and then associated to a hue value. Then the color associated to $f(z)$ is shown at the position $z$.

For instance, $f(z)=z^3+1$. This is how looks the interval $z=[+/-]4+[+/-]3i$:

So far so good. But we cannot perceive the sense of depth. So what I want to do is bringing up that depth using autostereograms.

My first idea was applying directly the normalized color map as depth map, and then create the autostereogram. The normalized color map shown above is converted into the following depth map:

And then it is possible to create the autostereogram. It is of the "wall-eyed" ("parallel") convergence type (non-cross eyed). The three-dimensional effect can be produced by both eyes looking at a the image by defocusing the eyes at a certain distance. The examples are fine-tuned to be seen at a distance around $30-40$cm (click in the image to see a full screen view):

There is a trick: it is included a subtle layer with the original color map, and then added transparency to the autostereogram (alpha=0.9). In that way, the original color map can be slightly seen and works as a color texture over the autostereogram, so when we look at it, we can see that colors and depth are matching.

Two more examples: $f(z)=z^5-1$ and $f(a+bi)=\tan{(ab)}+atan(ab)i$:

Indeed it is possible to make also animations once the eye gets used to the correct focal length. I wonder if this technique is in use (e.g. educational purposes). Initially it seems very interesting! I have added a question at MSE regarding this topic.

Complex Domain coloring vs Complex Range (over the output) coloring: which one brings more information?

Recently I have made a question regarding the Complex Domain coloring technique at MSE.

Basically, as Wikipedia says:

"Domain coloring is a technique for visualizing functions of a complex variable ...There were many earlier uses of color to visualize complex functions, typically mapping argument (phase) to hue."

So basically I have learned how to do the basic hue map when we have a complex  injective function $f(z)$. These are some simple examples:

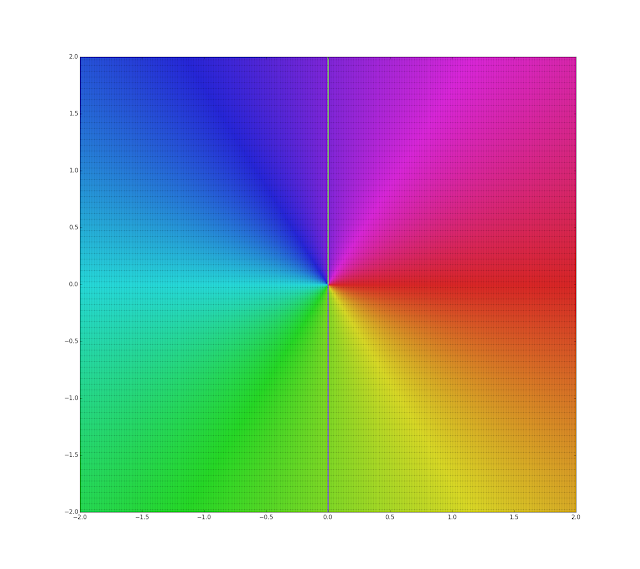

$(1)\ f(z)=\frac{1}{z}$

$(2)\ f(z)=\frac{(z^2-1)(z-2-i)^2}{z^2+2+2i}$

$(3)\ f(z)=z^3+1$

$(4)\ f(z)=z^5-1$.

$(5)\ f(z)=e^z$.

They are the mappings we are used to see. But to my surprise, then I tried a "reverse" mode, instead of mapping over the positions of the input complex points (the domain of the function), mapped the output points with the conversion to hue of the original input points, a kind of "Range coloring" or "Image coloring" or "coloring map over the result" of the function, the results were also very impressive. They are the other side of the coin of the relationship between the Domain and the Image/Range of the function (in the same order than before):

As usual, this is the Python code I have prepared to create the graphics. Feel free to use it and modify it:

def hsl_rgb_visu():

    def hslToRgb(h, s, l):
        # Source: https://stackoverflow.com/questions/2353211/hsl-to-rgb-color-conversion
        # Converts an HSL color value to RGB. Conversion formula
         # adapted from http://en.wikipedia.org/wiki/HSL_color_space.
         # Assumes h, s, and l are contained in the set [0, 1] and
         # returns r, g, and b in the set [0, 255].
        def hue2rgb(p, q, t):
            if t < 0:
                t += 1
            if t > 1:
                t -= 1
            if t < 1/6:
                return p + (q - p) * 6 * t
            if t < 1/2:
                return q
            if t < 2/3:
                return p + (q - p) * (2/3 - t) * 6
            return p

        r,g,b = 0,0,0

        if s == 0:
            r,g,b = l,l,l
        else:
            q=0
            if l < 0.5:
                q=l * (1 + s)
            else:
                q=l + s - l * s

            p = 2 * l - q;
            r = hue2rgb(p, q, h + 1/3)
            g = hue2rgb(p, q, h)
            b = hue2rgb(p, q, h - 1/3)

        prevR=str(hex(round(r * 255))).replace("0x","")
        prevG=str(hex(round(g * 255))).replace("0x","")
        prevB=str(hex(round(b * 255))).replace("0x","")

        if len(prevR)==1:
            prevR="0"+prevR
        if len(prevG)==1:
            prevR="0"+prevR
        if len(prevB)==1:
            prevR="0"+prevR

        return "#"+prevR+prevG+prevB

    from sympy import mobius, factorint, totient
    from gmpy2 import is_prime, is_square
    import matplotlib.pyplot as plt
    import csv
    from random import randint
    from math import sqrt, log, cos , sin , tan, pi, atan2, acos, pi
    import numpy as np
    import cmath as cmath
    import fractions

    def lcm(a,b): return abs(a * b) / fractions.gcd(a,b) if a and b else 0

    testlimit = 200
    testbase = 100

    lx=[]
    ly=[]
    lc=[]

    lh=[]
    ll=[]
    lr=[]
    ls=[]

    print("Calculating...")
    maxx=0
    maxy=0
    for posx in range(-testlimit,testlimit+1):
        for posy in range(-testlimit,testlimit+1):

            x=posx/testbase
            y=posy/testbase

            # Make function

            # function indentity
            #resx = x
            #resy = y
            #maxx = testlimit**2
            #maxy = testlimit**2

            # function complex multiplicative inverse 1/z example0
            #myc=x+(y*(1j))
            #if myc == 0:
            #    myc = 0
            #else:
            #    myc=1/myc


            # function complex example1
            #myc=x+(y*(1j))
            #myc=(((myc**2)-1)*(myc-2-(1j))**2)/((myc**2)+2+(2j))

            # function complex example2
            #myc=x+(y*(1j))
            #myc=(myc**3)+1

            # function complex z^5-1 example3
            #myc=x+(y*(1j))
            #myc=(myc**5)-1

            # function complex exp, asin, atan, acos, sin, tan, cos (con h) example4
            myc=x+(y*(1j))
            myc=cmath.exp(myc)

            resx=myc.real
            resy=myc.imag

            # Make the inverse mapping
            #if abs(resx)>5 or abs(resy)>5:
            #    continue

            # Make the inverse mapping
            #tmpresx = resx
            #tmpresy = resy
            #resx=x
            #resy=y


            if abs(resx)>maxx:
                maxx=abs(resx)
            if abs(resy)>maxy:
                maxy=abs(resy)

            current_angle = 0
            current_r = sqrt((resx**2)+(resy**2))
            if resx!=0:
                current_angle = atan2(resy,resx)
            else:
                if y>0:
                    current_angle = pi/2
                else:
                    current_angle = (pi/2)*3

            if current_angle < 0:
                current_angle = current_angle + (2*pi)

            current_angle = (1/(2*pi))*current_angle

            h = current_angle
            l = 0.5
            s = 0.7

            lx.append(x)
            ly.append(y)

            # Make the inverse mapping
            #lx.append(tmpresx)
            #ly.append(tmpresy)

            lh.append(h)
            ll.append(l)
            ls.append(s)
            lr.append(current_r)

    base=1/(sqrt((maxx**2)+(maxy**2)))
    for i in range(0,len(lx)):
        #ls[i] = 0.88-(base*lr[i])
        #ll[i] = 1-(1/(2**(1+(base*abs(lr[i])))))
        lc.append(hslToRgb(lh[i], ls[i], ll[i]))

    print("Plotting...")
    ax = plt.gca()
    ax.set_axis_bgcolor((0, 0, 0))
    figure = plt.gcf()
    figure.set_size_inches(18, 16)
    for i in range(0,len(lx)):
        print("Current index="+str(i)+" of "+str(len(lx)-1)+"\r", end='')
        plt.plot(lx[i],ly[i],".",color=lc[i])
    plt.savefig("visualize_4var_functions_with_colors.png")
    #plt.show()
    print("End...")

hsl_rgb_visu()

I think that in terms of Complex Domain coloring still there are things to explode and we are still seeing only one side of the coin. And the other side seems quite interesting!
